High-speed sortingRemoves up to 110 trim pieces per minute per lane, enabling optimal line performance without sacrificing accuracy.Precision servo controlThe integrated servo-driven conveyor and retraction system ensure fast and reliable removal of predefined trim items.Touchscreen control interfaceOperated via the multi-touch user interface on the Borncut 225 portion cutter. Cutting programs, servo movements and reject patterns are controlled and adjusted in real time.Flexible discharge optionsWorks with various discharge systems, including flipper arms and retraction conveyors, to suit your line layout.Space-saving designCompact footprint and direct mounting to the portion cutter reduce equipment complexity and streamline operations.

Technical specifications

Max sorting frequency: 240 operations/minMax capacity: up to 110 items/min/laneControl interface: multi-touch hmi on bc 225s/dLane configurations: single (qs225s), dual (qs225d)Sorting method: servo-controlled sliding unit and belt retractionDischarge direction: downward to box or secondary conveyor

Designed for soft, unfrozen products such as:Fish fillets (e.g., salmon fillets with skin)Chicken filletsTrimmed meat portions It removes portions like:Head cutsTail piecesTrimmings (minimum 12g)

Auxiliary equipment

QuickSort

Smart removal of head, tail and trim pieces
Sorts up to 110 items per minute per lane.
Seamless control with our portion cutters

High-speed, automated sorting of soft, unfrozen products

QuickSort is designed to streamline your portioning process by quickly and accurately removing heads, tails and other trim from soft, fresh products like fish and chicken fillets. The result is better raw material sorting and improved operational efficiency. It works directly in sync with the our portion cutters, forming an intelligent, system that sorts up to 110 trim pieces per minute per lane. QuickSort improves consistency, reduces labor requirements and speeds up production, delivering higher yield with less effort. Whether you’re processing fresh poultry or fish, QuickSort turns precision into productivity with every cycle.

See the QuickSort in the Portioning and Packing Line

Why add QuickSort?

Smart trim handling

Automatically removes head, tail and trim pieces to increase speed and ensure consistency.

Seamless line integration

Connects easily with other discharge systems and adjusts quickly via touchscreen.

Flexible configurations

QS225S suits compact lines, while QS225D handles high-volume production.

QuickSort in action

As products move from the portion cutter onto the QuickSort conveyor, the system identifies and separates trim pieces automatically. Trim portions are gently retracted from the line to a dedicated discharge or belt, while prime portions continue seamlessly down the production line. All settings are managed through the BC 225 portion cutter’s multi-touch control panel, letting operators fine-tune cutting patterns, speeds and outputs with ease.

Key features and benefits

- High-speed sorting
  Removes up to 110 trim pieces per minute per lane, enabling optimal line performance without sacrificing accuracy.
- Precision servo control
  The integrated servo-driven conveyor and retraction system ensure fast and reliable removal of predefined trim items.
- Touchscreen control interface
  Operated via the multi-touch user interface on the Borncut 225 portion cutter. Cutting programs, servo movements and reject patterns are controlled and adjusted in real time.
- Flexible discharge options
  Works with various discharge systems, including flipper arms and retraction conveyors, to suit your line layout.
- Space-saving design
  Compact footprint and direct mounting to the portion cutter reduce equipment complexity and streamline operations.
- Max sorting frequency: 240 operations/min
- Max capacity: up to 110 items/min/lane
- Control interface: multi-touch hmi on bc 225s/d

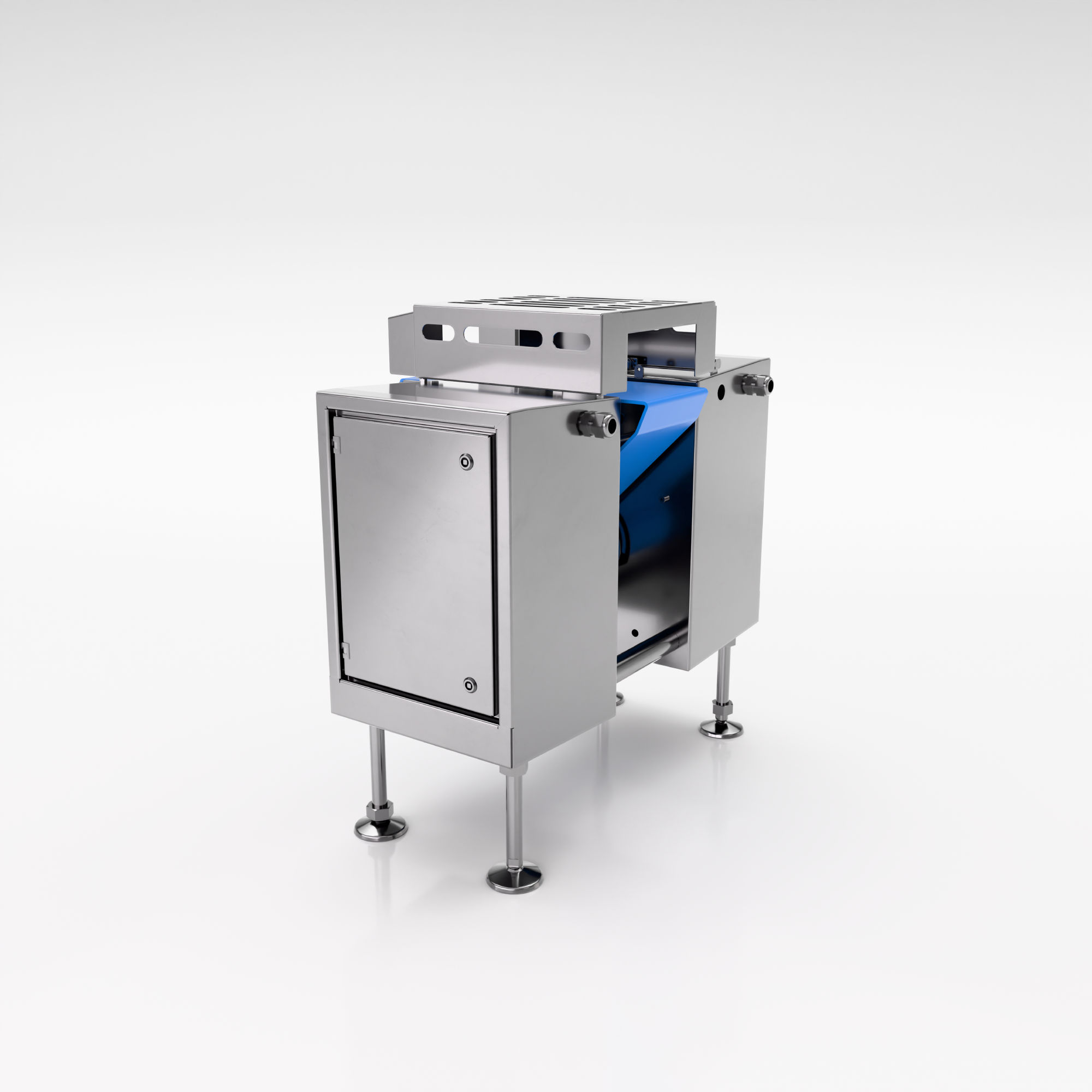

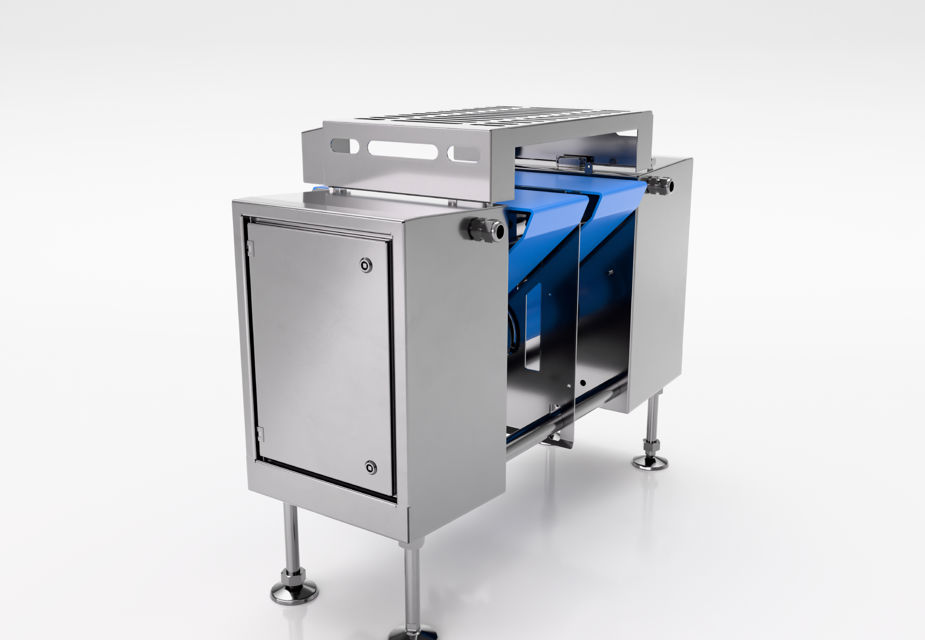

- Lane configurations: single (qs225s), dual (qs225d)
- Sorting method: servo-controlled sliding unit and belt retraction
- Discharge direction: downward to box or secondary conveyor
Designed for soft, unfrozen products such as:
- Fish fillets (e.g., salmon fillets with skin)
- Chicken fillets
- Trimmed meat portions
It removes portions like:
- Head cuts
- Tail pieces
- Trimmings (minimum 12g)

Easy to program and operate

QuickSort is fully integrated with our portion cutter series, leveraging the same user-friendly control panel. Operators can program cut patterns, rejection thresholds and servo behaviour directly from the main touchscreen interface. All sorting decisions are executed in real time based on the product's cut program and live position data.

Modular approach to portioning

The QuickSortis part of our modular approach to portioning, designed to integrate seamlessly with Borncut portioning machines in both single and dual-lane configurations. As an auxiliary module, it plays a specific role within the overall line to support efficient batching and packing. Every element in our portioning systems is engineered to work together as a cohesive solution, with the QuickSort enhancing flow, precision and yield as part of a fully optimized line.

See the QuickSort in the Cube Master Line
